Product description
Description

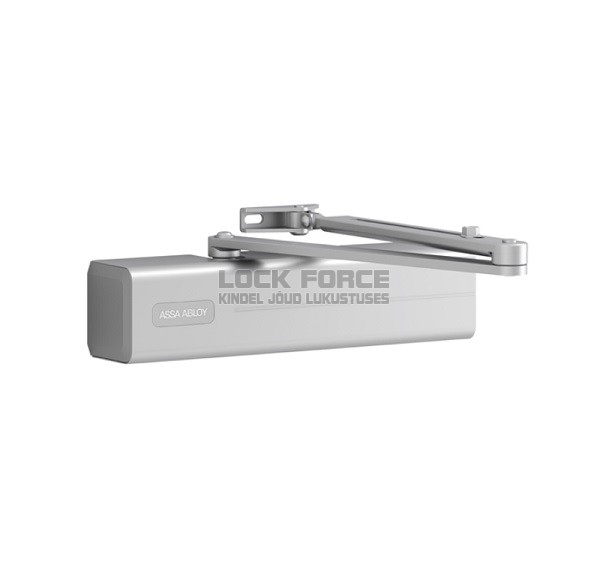

DOOR CLOSER ASSA DC336 BC, CLASS 3-6
ASSA ABLOY Door Closer DC336 featuring rack and pinion technology in compliance with EN 1154. Door closer can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors. Can be used for left and right-handed doors.
Finish: silver
Weight: 1.9 kg
H: 64 mm x D: 57 mm X L: 270 mm
Opening angle up to 180°
Closing power variable adjustable, EN size 3-6/2-3 for doors up to 1400/950 mm wide (link arm/guide rail)
CE approved
14 mm height adjustable arm system for ease of fitting
Working temperature: -35 ˚C to +45 ˚C
For single action doors with link arm up to 120 kg and 1400 mm wide doors
Closing speed, latching speed and backcheck adjustable via front facing regulating valves, thermodynamic valves for consistent performance.
The set does not include link arm!
