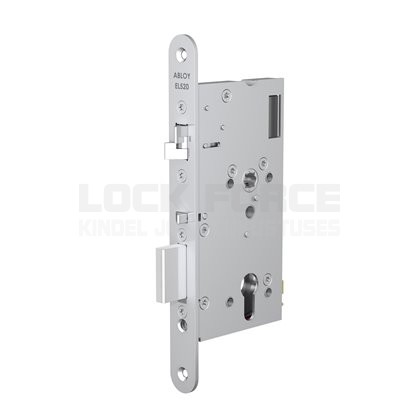

Motor Lock ABLOY EL520-55/24

Description MOTOR LOCK ABLOY EL520 EL520 push&pull function motor lock case for wooden and metal door. Motor locks are best suited in high traffic doors. Features Operating voltage:12-24V DC. max current 850mA norm. 300mA Temperature range: -20…+60°C Backset: 50mm Spindle: 9 mm Forend: 24 mm Function A pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always. Applications Entrance doors, corridor doors High traffic exit doors and access controlled doors Fire rated doors Doors with door automatics Business premises Hospitals Sports stadiums
