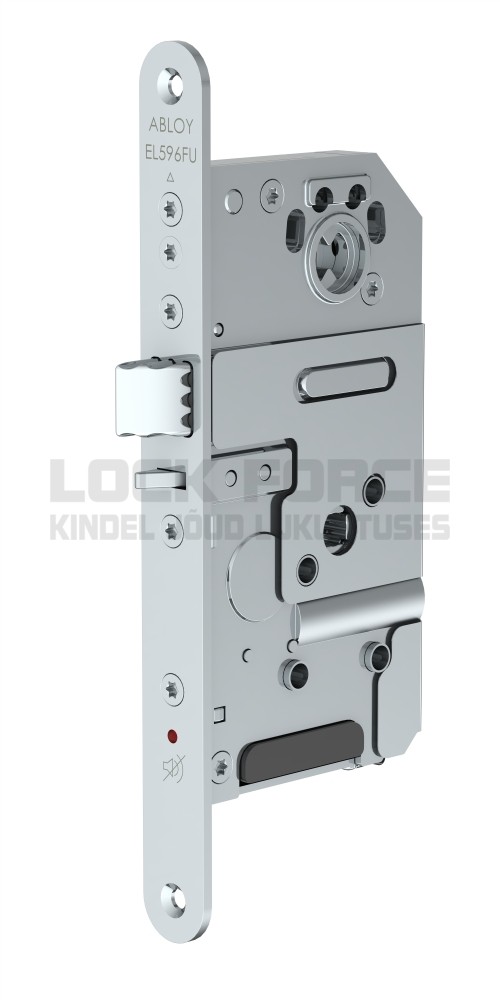

MOTOR LOCK ABLOY EL596 FU
Motor lock ABLOY EL596 FU with OneFit mortise for solid doors. Fail Unlocked (FU) system for high security double pass doors. The ATS activates the handle for exit.
Features:
Operating voltage:12-24V DC. max current 700mA (12 V), 1700mA (24 V)
Temperature range: -20…+60°C
Backset: 50mm
Forend: 22mm
Adjustable strike plates LP712, LP722, LP732
Strike plates for metal doors: EA307, EA308, 4613, 4614
Cable: EA217
Standard: EN 179
Applications
High traffic exit doors where push/ pull functon or door automatics are needed
Fire rated doors
Swing door automatics
