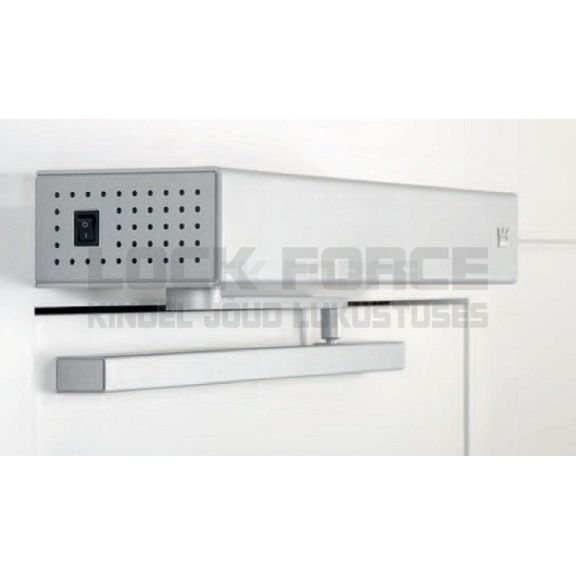

Доводчик Swing DORMA ED100 без крышки

Description SWING DOOR SYSTEM DORMA ED 100LE, WITHOUT COVER Automatic doors provide a means of opening and closing doors without the need of physical effort. Dorma low energy swing door operator provides easy and safe access for all users. This is a swing door operator gearing which must be copleated with cover, closing arm(standard or sliding), sensors and power cablel. Features Low noise level through multi-stage gearing Door weight up to 100 kg Door width up to 1100 mm Suitable for fire rated doors, EI60 Dimensions (W x H x D): 685 x 70 x 130 mm Opening angle: Max. 110° Hold-open time: 0-30 seconds Max. opening speed: 27° per second Max. closing speed: 27° per second Cover: BASIC (with double doors two BASIC covers and one VARIO cover) Integrated program switch – OFF, AUTOMATIC, PERMANENT OPEN, EXIT ONLY (OPTIONAL – only for single-leaf systems) Technical information Temperature: -15C° kuni +50C° Relative humidity: ~98% Voltage: max. 8-24 V AC/DC + 10% Power consumption: 120 W Places of use Shopping center Hospitals Schools Office buildings etc Attention! Closing arm is not included. With double doors use VARIO cover for connection of the two BASIC covers and add to the set a tactical devise to close the doors in right order.
