Description

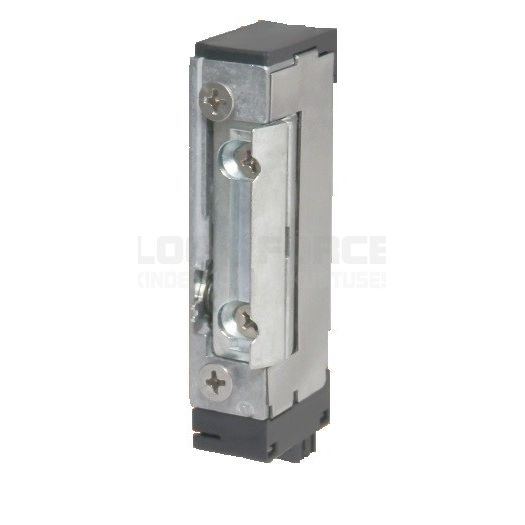

ELECTRIC STRIKE 99-2 NF PL
This version incorporates an internal mechanical system that simulates an AC functionment till the internal mechanism is opened, then it’s automatically changed to VDC to keep the door opened without noise.
Features
VDC PRELOAD opening up to 20 kg
Non handed
Symmetrical
Adaptative preload system
Technical information
Height: 66 mm
Width: 16 mm
Depth: 25,5 mm
Multivoltage: 10-24V AC/DC
Power consumption: 180mA (12VDC)
Rated resistance: 43 Ω
Brake-in resistance: 3230 N / 330 kg
Operating temperature range: -15 ºC… +40 ºC
