Tuotekuvaus
Description

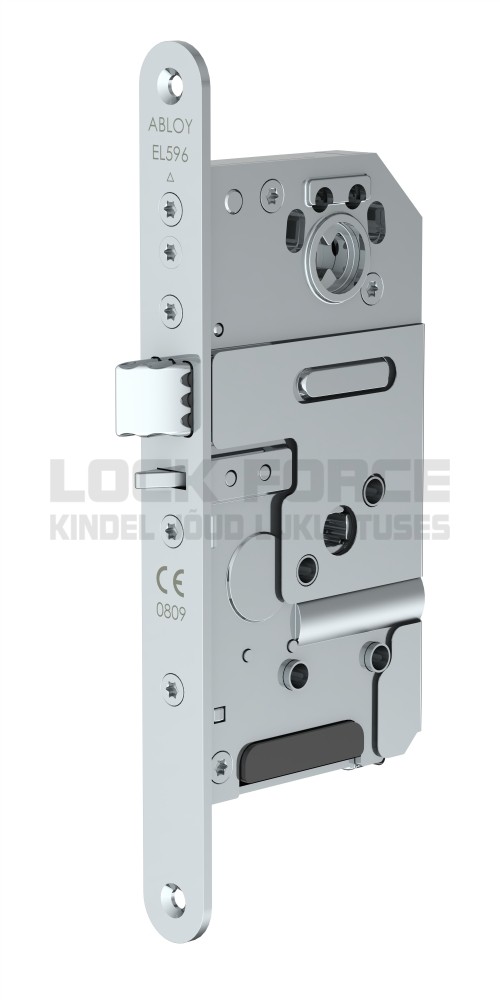

MOTOR LOCK ABLOY EL596
Motor lock ABLOY EL596 with OneFit mortise for solid doors. High security lock case with mechanical exit function.
Features:
Operating voltage:12-24V DC. max current 700mA (12 V), 1700mA (24 V)
Temperature range: -20…+60°C
Backset: 50mm
Forend: 22mm
Adjustable strike plates LP712, LP722, LP732
Strike plates for metal doors: EA307, EA308, 4613, 4614
Cable: EA217
Standard: EN 179
Applications
High traffic exit doors where push/ pull functon or door automatics are needed
Fire rated doors
Swing door automatics
When electric control is on, the door can be opened by pushing or pulling. The door can always be opened by using inside handle or panic bar.
