Produktbeschreibung

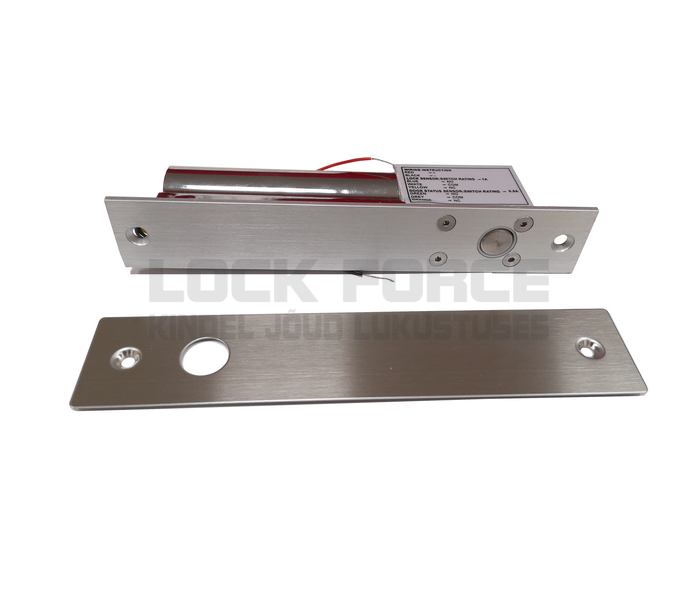

ELECTRIC DROP BOLT LOCK 1096AW-2Electric drop bolt is compatible with access control, door phone, remote control system
Low power consumption
Durable and silent operation
Suitable for fully frameless glass doors
Fail safe operation (unlocks if power is lost)
Lock statue signal output contact
Door statue signal output contact
Time delay: 0,3,6,9 sec
Material: stainless steel
Measurements: 205 x 58 x 46mm (length x width x height)
Bolt size: 15.5 mm, stainless steel
Current draw: 800mA
Voltage: 12DVC
Induction distance: 8mm
Operating temperature: -10…+50C°
Operating humidity: 0…90%(non-condensing)
