Description

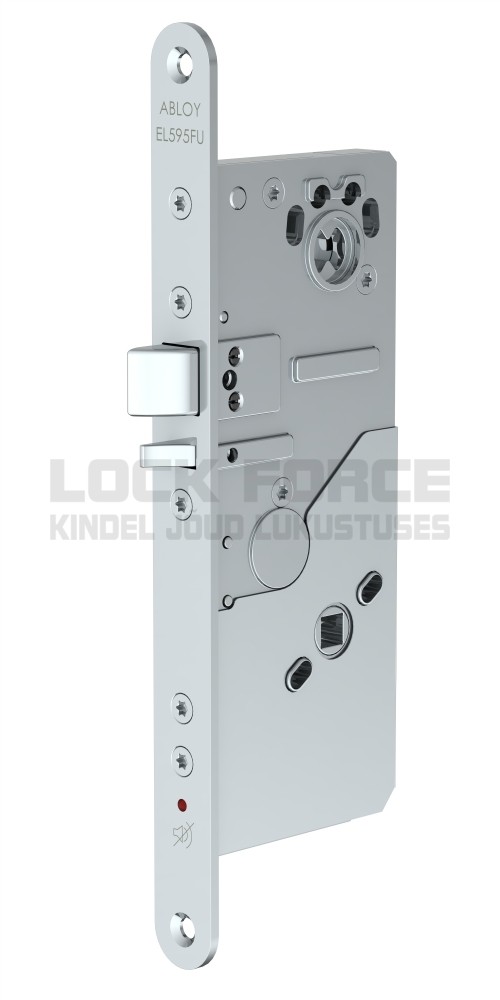

MOTOR LOCK ABLOY EL595-FU
EL595-FU push&pull function lock case for solid doors.
According to the standard: EN179.
Opened with the inside handle
Operating voltage:12-24V DC. max current 850mA norm. 300mA
Bolt throw: 20-14 mm
Temperature range: -20…+60°C
Backset: 50mm
Spindle: 8 mm
Forend: 22 mm
Strike plates: LP712, LP722, LP732
Lead covers: EA280, EA281
Cable: EA217
Function:
A pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
Door handle can be electrically operated. Door handle works in case of power failure.
Applications:
Interior and exterior doors of offices, business premises, hospitals, schools
Exit doors
Exterior doors of apartment buildings
Doors with door automatics
Fire rated doors
