Description

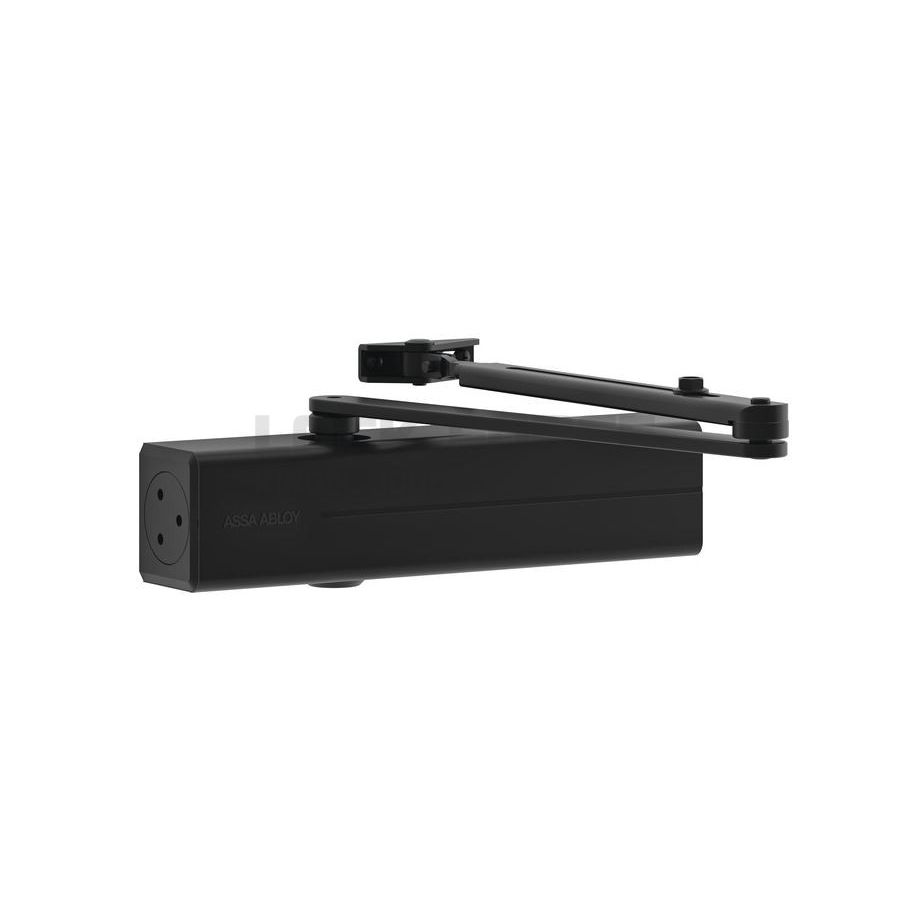

Door closer can be integrated concealed mounting plate, suitable for fire and smoke protection doors.
Characteristrics
Color: black
Certified in compliance with EN 1154, size 2-4
Axis height adjustable up to 14 mm
Operating temperature: +45°C to -35°C
Opening angle up to 180°
Closing speed, latching speed and backcheck adjustable via front facing regulating valves
Thermodynamic valves for consistent performance
Variable adjustable closing force
Standard colours: silver (EV1), white (RAL9016), brown (RAL8014), black (RAL9005). Customised finishes available on request.
The set does not include link arm!
Applications
Can be used for DIN left and DIN right-handed doors
For single action doors up to 1100 mm wide
Suitable for fire and smoke protection doors
