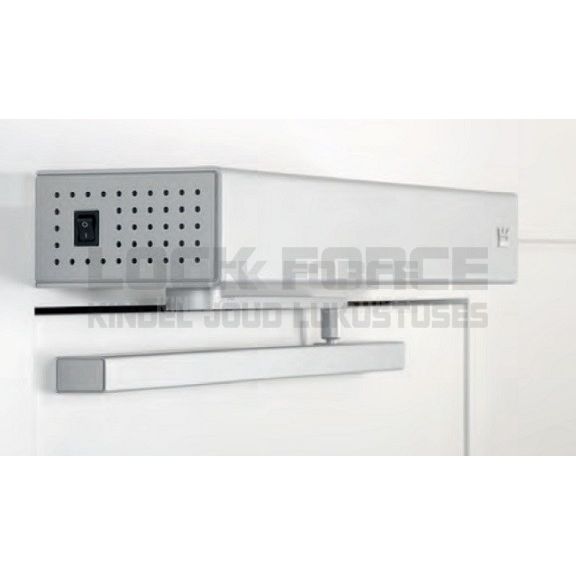

Uksesulgur DORMA ED 250 230V, ilma kattega

Description SWING DOOR SYSTEM DORMA ED 250, WITHOUT COVER Automatic doors provide a means of opening and closing doors without the need of physical effort. Dorma low energy swing door operator provides easy and safe access for all users. This is a swing door operator gearing which must be copleated with cover, closing arm(standard or sliding), sensors and power cablel. Features Low noise level through multi-stage gearing Door weight up to 250 kg Door width up to 1600 mm Suitable for fire rated doors, EI60 Dimensions (W x H x D): 685 x 70 x 130 mm Opening angle: Max. 110° Hold-open time: 0-30 seconds Max. opening speed: 27° per second Max. closing speed: 27° per second Cover: BASIC (with double doors two BASIC covers and one VARIO cover) Integrated program switch – OFF, AUTOMATIC, PERMANENT OPEN, EXIT ONLY (OPTIONAL – only for single-leaf systems) Technical information Temperature: -15C° kuni +50C° Relative humidity: ~98% Voltage: max. 8-24 V AC/DC + 10% Power consumption: 120 W Places of use Shopping center Hospitals Schools Office buildings etc Attention! With double doors use VARIO cover for connection of the two BASIC covers and add to the set a tactical devise to close
