Description

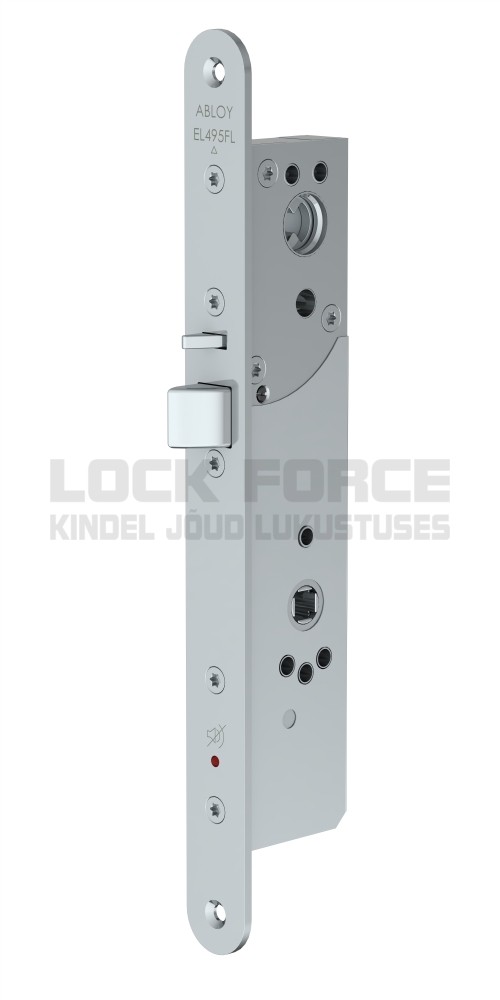

MOTOR LOCK EL495-29 MM FL. 12-24V
Motor lock EL495-29mm FL push & pull function lock case for narrow profile doors. The Fail Locked model for exceptional environments has an electric handle which is deactivated in case of a power cut.
Features
Operating voltage: 12-24 V DC, max voltage 700mA (24V), 1700mA (12V)
Bolt throw: 14mm
Maximum door weight: 200kg
Working temperature: -20 to +60 °C
Backset: 29mm
Forend: 25mm
Finish: chrome
Strike plate: LP702, LP703 (EN1125)
Cable: EA217, EA227, EA228
Lead cover: EA281
Standard EN179 and EN1125
Function
A pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer reader, push button). Inside handle opens the lock always. The door stays closed if any kind of input is triggered. The lock has Intelligent Self Diagnostic Function.
Applications
Interior and exterior doors of offices, business premises, hospitals and schools
Exterior doors of apartment buildings
Exit doors
Fire rates doors
Doors with door automatics
