Description

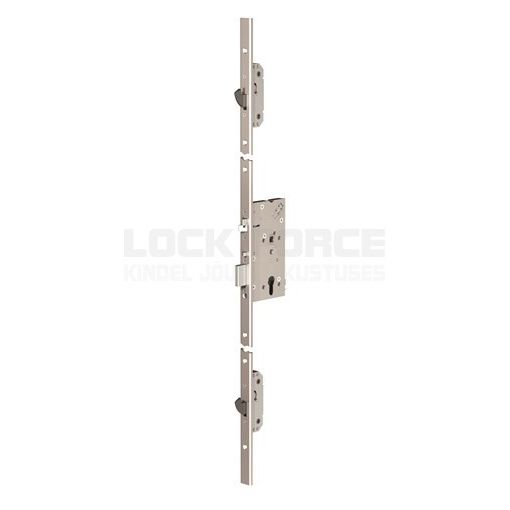

MULTIPOINT LOCK ABLOY EL566 65/24mm
EL566 is a handle controlled solenoid multipoint lock used in wooden and metal doors.
Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit and fire rated doors.
Features
Finish: chrome
Operating voltage: 12-24 VDC
Backset: 65 mm
Forend: 24 mm
Temperature: -20 to +60C
Standard: EN 179, EN 1634-1, EN 6100-6-1, EN 6100-6-3, EN 14846, EN 12209
Cylinders: CY303T, CY313T, CY321T, CY331T, CY304T, CY314T, CY322T, CY332T, CY305T, CY315T, CY323T, CY333T Protec.
Places of use
In the interior doors of business premises, public buildings, hospitals etc.
Security doors
Fire doors
Used in wooden and metal doors
Used in narrow profile doors
When both access and exit are electrical
Best suited in medium traffic doors
