Opis produktu

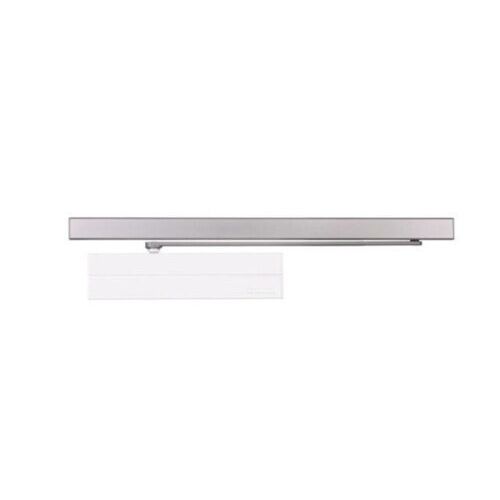

An aesthetic solution for keeping a door open while ensuring a functional, simple, convenient, and safe passage for everyday users. This is provided by the Assa Abloy coordinating systems. The G460 is designed to hold a single door leaf in the open position. It uses an electromechanical magnet integrated into the slide arm.
For fire doors, the G460 is connected to the fire alarm system or smoke detector (ATS). In the event of a fire alarm, this ensures that the door closes securely. A release switch must also be installed to disengage the magnet.
The G460 is installed together with the DC500 or DC700 door closer.
Specifications:
Maximum door leaf width: 1400 mm Maximum door leaf weight: 120 kg Suitable for fire and smoke control doors Suitable for both left- and right-handed doors Can be installed on the hinge side or opposite hinge side Door opening angle: 70°–130° Power consumption: 60 mA, 24 VDC
