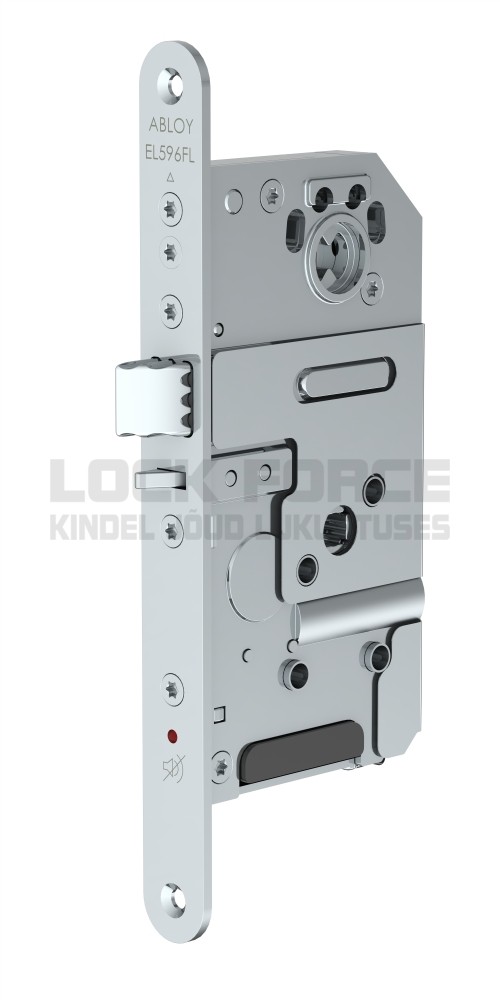

MOTOR LOCK ABLOY EL596 FL
Motor lock ABLOY EL596 FL with OneFit mortise for solid doors. Fail Locked (FL) system. Lock handle is deactivated in case of a power failure.
Features:
Operating voltage:12-24V DC. max current 700mA (12 V), 1700mA (24 V)
Temperature range: -20…+60°C
Backset: 50mm
Forend: 22mm
Adjustable strike plates LP712, LP722, LP732
Strike plates for metal doors: EA307, EA308, 4613, 4614
Cable: EA217
Standard: EN 179
Applications
High traffic exit doors where push/ pull functon or door automatics are needed
Fire rated doors
Swing door automatics
