Description du produit

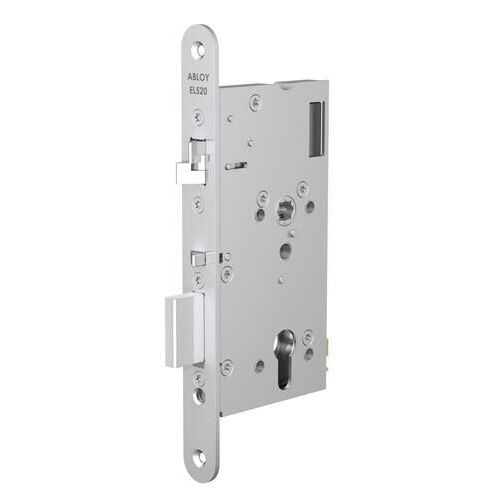

EL520 push & pull function motor lock case for wooden and metal doors
APPLICATIONS: - entrance doors, corridor doors - high traffic exit doors and access controlled doors - fire rated doors - doors with door automatics - forend 24 mm - backset 65 mm
FUNCTION: - a pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
TECHNICAL DETAILS Operating voltage: 12 – 24 V DC (± 15%), 12 - 18 V AC, RMS (-10%, +15%) Current: Max. 1.3 A (12 V), 0.6 A (24 V), Normal 0.45 A (12 V), 0.22 (24 V), Idle 0.08 A (12 V), 0.04 A (24 V) Relays: Max. 0.8 A 30 V AC/DC resist, 10 W Operating temperature: -20°C - +60°C Bolt throw: 20 mm (deadbolt), 10 mm (double action bolt) Backset: 65 mm Forend: 24 mm Spindle: 9 mm (8 mm with snap spindle adapters) Settable functions: mechanical functions: handing of trigger bolt
Monitoring outputs: - Bolt deadlocked - Bolt inside the lock case - Door closed - Handle used - Cylinder used - Cable sabotage
